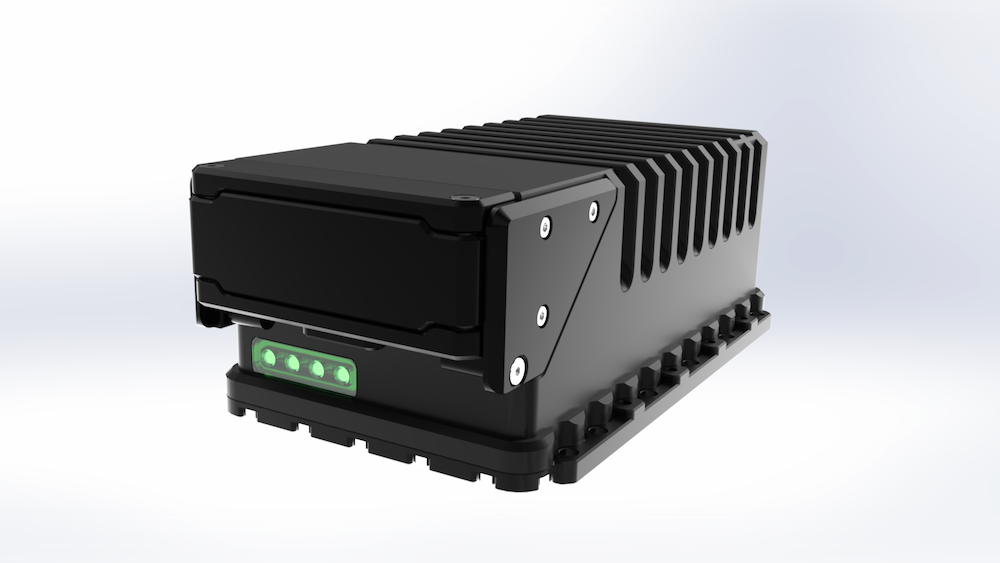

Galleon G2
YITH Badge

Galleon G2

microRecorder / microNAS / microServer

ApplicationsBenefits
‣ Autonomous vehicles (UAVs,
UGVs, UUVs, USVs)		‣ SWaP-C optimized (size, weight,
power, cost)
‣ Surveillance & reconnaissance‣ High performance & bandwidth
‣ Flight management & cockpit
systems		‣ Rugged design (conduction or
convection cooled)
‣ Airborne data systems (servers,
recorders, loaders)		‣ Flexible & scalable architecture
‣ Map & navigation systems‣ Ingress protection

Login to Download Datasheet

SKU: g1-xyb7i-1 Categories: , , Tag:

Get a Quote

Name(Required)
Email(Required)

Overview

The Galleon G2 microRecorder, a robust Gigabit and 10Gb Ethernet Recorder and NAS, is engineered to withstand harsh environmental conditions without any compromise on functionality. Its optimized Size, Weight , Power, and Ingress protection design make it a perfect fit for small, unmanned aerial and ground systems and other applications where space and power are limited.

The G2 has high bandwidth network connectivity, through four 10GbE ports and one GbE port. The G2 microRecorder and microNAS configurations support read/write operations to the NVMe-based high-performance disk array at up to 2 GB/s. Removable Data Modules up to 16 TB are available, with higher-capacity options currently in development. With the easy access data module, the G2 ensures quick turnaround times between missions. The removable data modules facilitate easy data transport from vehicle or aircraft to command station or lab. The recorder uses Linux EXT4 file system and supports JBOD, RAID 0 and RAID 1 modes. Data at rest can be optionally protected with dual encryption layers—HWFDE and SWFDE—and is planned for CC and CSfC certification.

The G2 is a great solution for applications requiring high-bandwidth data collection and storage in a tiny, extremely rugged enclosure. Galleon’s quality management system is certified to Aerospace Standard AS/EN 9100 and ISO 9001.

(Preliminary release)

Specifications

Processor
• Intel® C3708 SoC, 8 core, 1.7GHz
• 16GB DDR4 SDRAM with ECC

Rear Panel Interfaces
• 4x 10GBASE-T
• 1x 1000BASE-T (option)
• 2x USB2.0
• 2x RS232
• 1x Power
• 1x CANbus/RS422/RS485 (option)
• 1x GPS antenna input (option)
• Optional expansion module IO
• 4x NVIS compatible LEDs
• 1x Video output (option)

Storage
• Up to 16TB Removable Data Module using NVMe SSDs
• RAID modes 0 and 1
• Exported file systems: NFS, SMB/CIF, FTP and HTTP
• JBOD, RAID0 RAID1 support
• Internal system drive (option)

Monitoring
• SMART
• SNMP
• Syslog
• BIT suite

Data Security
• SWFDE (option) – pending CC/CSfC approval
• HWFDE (option) – coming soon
• Write protected memory (option)

Operating Temperature
• 0°C to +50°C standard temperature
• -40°C to +75°C extended temperature

Shock and Vibration
• MIL-STD-810

Altitude
• -1,500 to 60,000 ft*

EMI/RFI
• MIL-STD-461

Ingress Protection
• IP66, IP67 (TBC)
• ATPD-2404 immersion and jet wash

Humidity
• MIL-STD-810, 95% @ 60°C

Power Supply
• 16-40V DC (nominal) (TBC)
• MIL-STD-704 and MIL-STD-1275

* Contact factory for high altitude options

Key Features

â–Ş Quad 10-Gigabit Ethernet Ports

â–Ş Additional Gigabit Ethernet Port (option)

â–Ş microNAS configuration: NFS, SMB/CIFS, FTP and HTTP

â–Ş microRecorder configuration: >2GBytes/s (TBC)

â–Ş microServer configuration: Linux OS

â–Ş RAID 0 and 1 support

â–Ş GPS unit for date and time sync (option)

â–Ş 16-40V DC power

â–Ş MIL-STD-1275, MIL-STD-810, MIL-STD-461 and MIL-STD-704

â–Ş Ingress protection: ATPD-2404 and IP66/67
