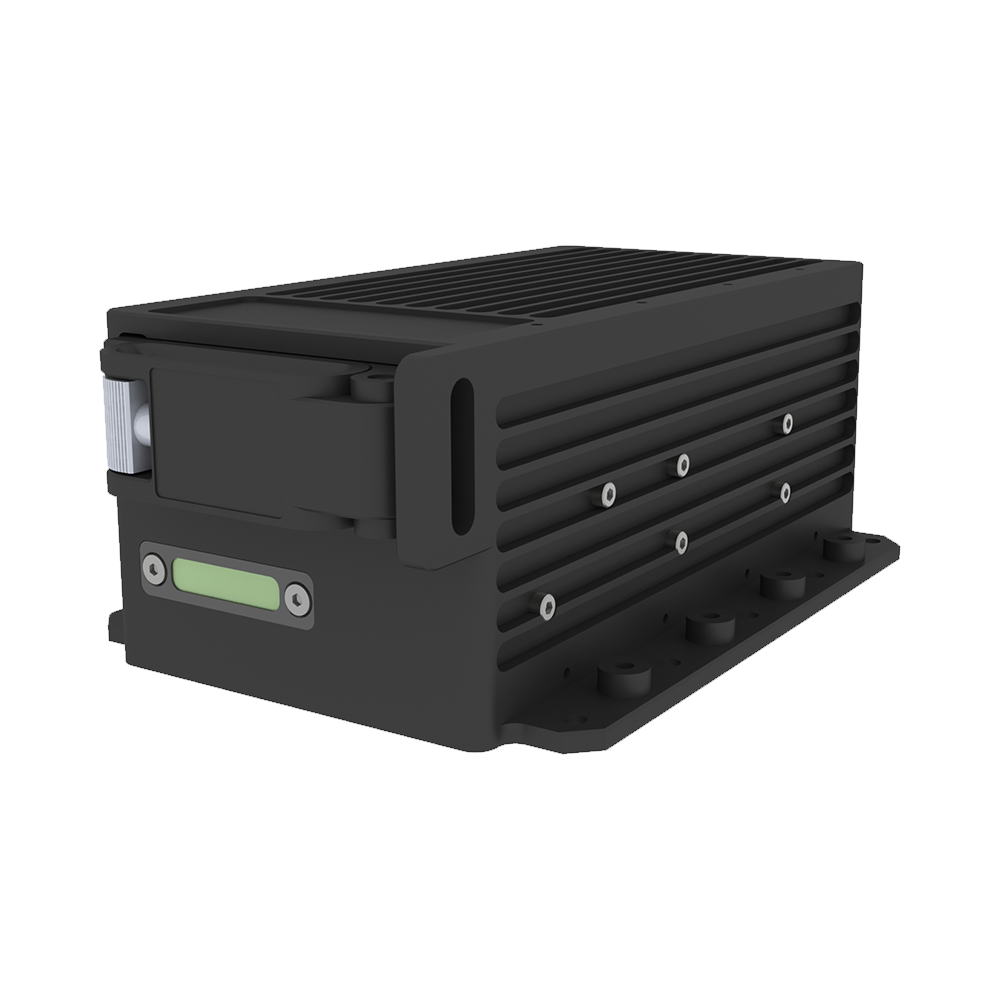

G1 microNAS
Rugged Network Attached Storage – High-Performance
| Applications | Benefits |
|---|---|
| ‣ UAVs, UGVs | ‣ SWaP optimized |
| ‣ Surveillance | ‣ High performance |
| ‣ Flight management | ‣ Flexible and scalable |
| ‣ Map systems | ‣ Conduction cooled options |
| ‣ Cockpit information systems | ‣ Convection cooled options |
| ‣ Data loader systems | ‣ Ultra lightweight |
| ‣ Airborne servers | ‣ Low power |
This product is equipped with NIAP-Approved Dual-layer Software Full Disk Encryption (SWFDE) & Hardware Full Disk Encryption (HWFDE) and is listed on the NSA CSfC Approved Components List. View CSfC List
Login to Download Datasheet
Overview
The Galleon G1 microNAS offers superior performance in an ultra-small form factor. Removable storage ensures short ground times for airborne applications. Industry-standard solid-state drives are used to benefit from the ever-increasing storage densities and cost reductions as the technology evolve.
The Galleon G1 microNAS is capable of handling a high number of simultaneous connections without compromising system performance. Four channels of Gigabit Ethernet connections are available for multi-channel high bandwidth applications. An optional 10GBase-T can also be added.
The unit can be delivered with Windows Embedded Storage Server or Linux Enterprise Server preconfigured to suit your application needs.
Optional Common Criteria and CSfC approved hardware and software encryption layers, provide a high level of data security with flexible key management options, including local ports and remote loading over secure network connections. Further security enhancements such as FIPS 140 approved hardware solutions and quick erase and military erase algorithms are also supported.
Galleon Embedded Computing’s quality management system is certified to Aerospace Standard AS/EN 9100 and ISO 9001.
Specifications
Rear Panel Recording Interfaces
• 4x 1000BASE-T ports
• 1x 10GBase-T port (option)
• 1x VGA
• 2x USB2.0
• 2x RS232
• 1x Power
• 1x GPS antenna input (option)
Storage
• Up to 40TB removable MLC SSD
• Up to 20TB removable SLC SSD
• RAID modes 0 and 1
• Supported file systems: EXT4, UFS
FAT, NTFS
• Exported file systems: SMB/CIFS, NFS, AFP, FTP, HTTP and rsync
• JBOD, RAID 0, RAID 1 support
Monitoring
• SMART
• SNMP
• Syslog
Data Security
• HWFDE using XTS-AES 256bit (option)
• Certified FIPS 140-2 encryption inside (AES-256)
• SWFDE using XTS-AES 256bit (option)
• Write protected memory (option)
Operating Temperature
• 0°C to +50°C standard temperature
• -40°C to +75°C extended temperature
Shock and Vibration
• Tested to MIL-STD-810
Altitude
• -1500 to 60 000 ft*
EMI/RFI
• Tested to MIL-STD-461
Humidity
• Up to 100%, condensing
Size, Weight & Power
• 3.2 x 2.5 x 7.2” (83 x 63 x 185 mm)
• Conduction cooled and natural convection cooled
• Weight: < 2.6 lb (1.2 kg) (incl storage)
• Power: 20W-35W (configuration dependent)
Power Supply
• 16-50V DC (nominal)
• Tested to MIL-STD-704
* Contact factory for high altitude options
Key Features
Key Features
• Quad Gigabit Ethernet ports
• 1x 10GbE port
• SMB/CIFS, NFS, AFP, FTP, HTTP and rsync
• RAID 0 and 1 support
• GPS unit for date and time synchronization
• Up to 20TB SLC or 40TB MLC removable solid-state storage
• 16V-50V DC power
• Windows or Linux
• Tested to MIL-STD-810, MIL-STD-461 and MIL-STD-704
